How to Put Your iPhone 3GS back-together After a Battery Replacement or LCD/Digitizer Repair

Written by iHospital. Posted in How To

This guide picks up where most have failed. There is not one guide out there that tells you how to put your phone back together after a repair. I will break down step by step on how to do this so you do not miss any parts along the way.

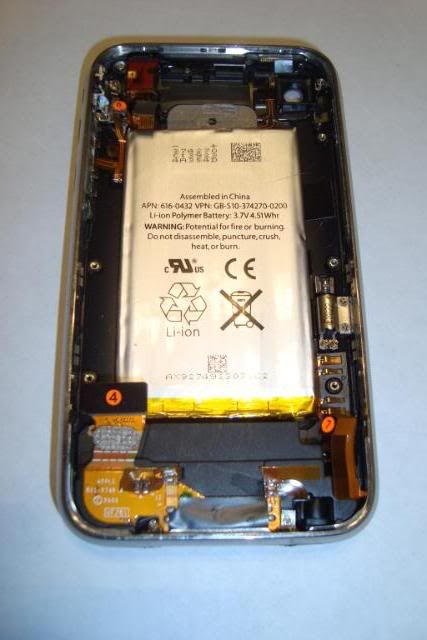

Step 1-By now you should probably put your new battery in place.

Photobucket

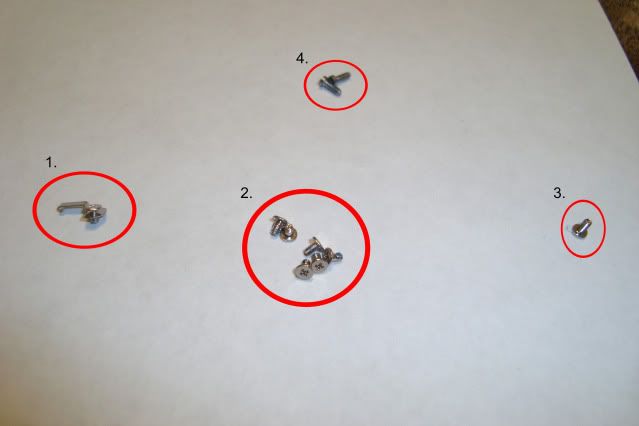

Step 2-Lets divide your screws into 4 categories so we put the right ones where they belong.

Photobucket

Group 1-Bracket and screw for camera

Group 2-6 Screws all the same length for the mainboard

Group 3-Longer single screw for the mainboard where the Do Not Remove sticker was/is

Group 4-Longest 2 screws that go next to the dock connector on the bottom of the phone

Slide the mainboard into place.

Photobucket

Step 3-Now use screw Group 1 and screw in the camera here using the bracket and screw

Photobucket

Step 4-Use Group 2 and screw in these 6 spots around the mainboard

Photobucket

Step 5-Use Group 3 and screw in this spot where the “Do Not Remove” sticker is/was.

Photobucket

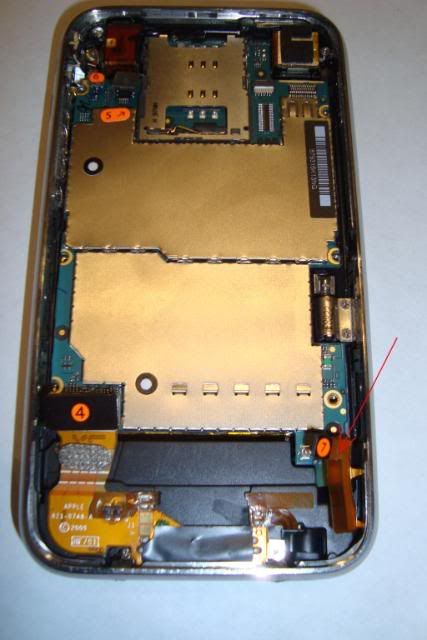

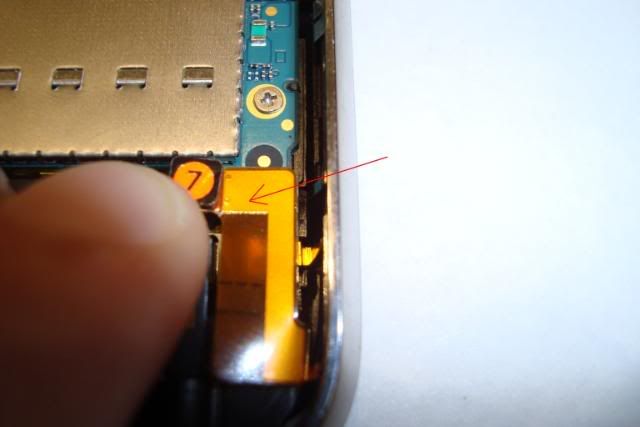

<Step 6-Push the ribbon cable #7 back into place. Be careful not to tear any of the cables.

Photobucket

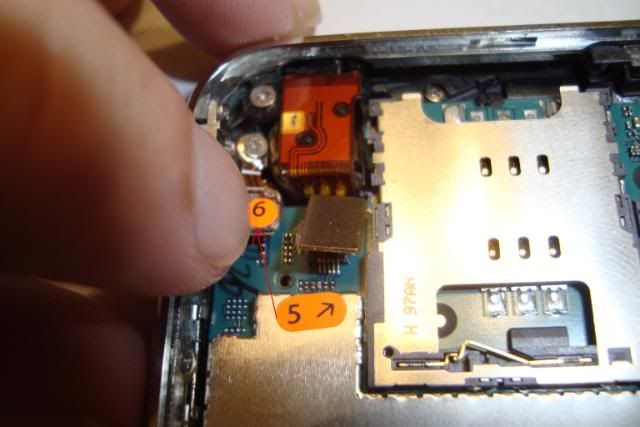

Step 7-Push the ribbon cable #6 back into place. Be careful not to tear any of the cables.

Photobucket

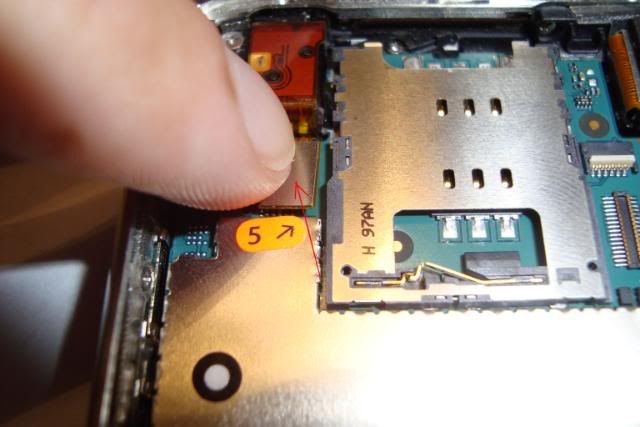

Step 8->Push cable #5 back into its place.

Photobucket

Step 9-Push cable #4 back down into place.

Photobucket

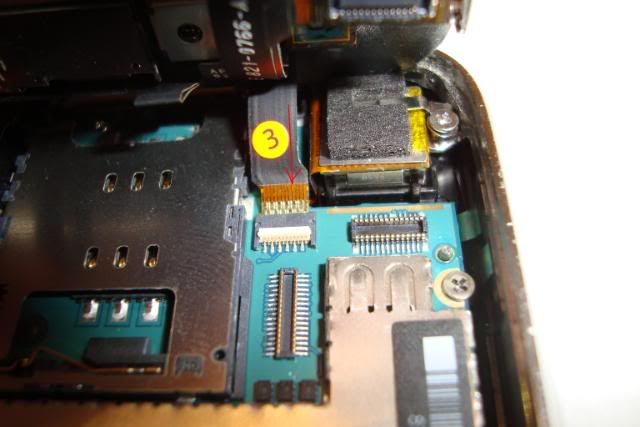

Step 10-Now we are going to attach the display back onto the phone. Cable #3 is going to slide into this port. Make sure the tab is up and be patient, this is a tricky one to slide into place.

PhotobucketPhotobucket

Step 11-Push the little tab down to hold the ribbon cable in place.

Photobucket

Step 12-Push cable #2 down in place.

Photobucket

Step 13-Push cable #1 down into its place.

Step 14-Slide the top end of the display just under the chrome ring that goes around the phone.

Photobucket

Step 15-Push the bottom portion of the display down gently until it is flush with the chrome ring.

Photobucket

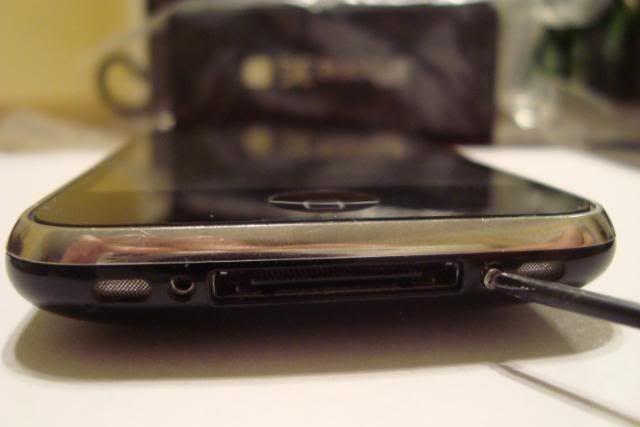

Step 16-Locate the 2 openings on the bottom of the phone on each side of the dock connector.

Photobucket

Step 17-Use the screws from Group 4 to screw into these openings to hold the display into place.

Photobucket

Step 18-Slide the sim tray back into place.

Photobucket

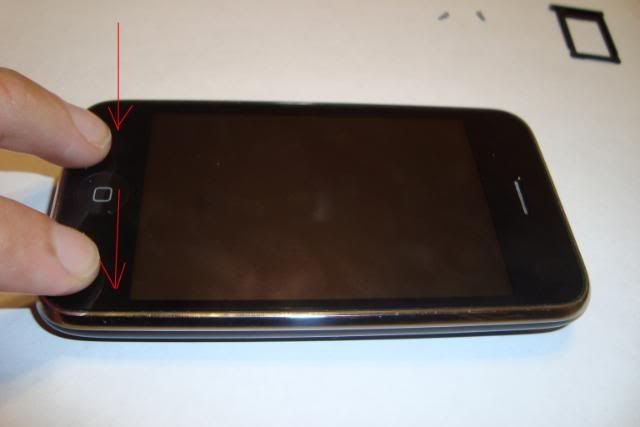

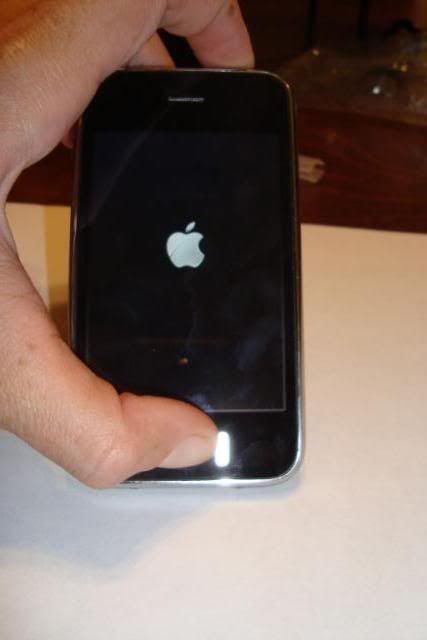

Step 19-Hold the home and power buttons down to reset the phone until you see the apple.

Photobucket
You have now successfully pieced back together your iPhone 3GS and it is now ready for use!!!
